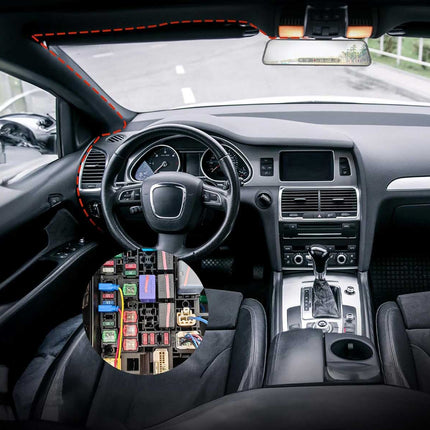

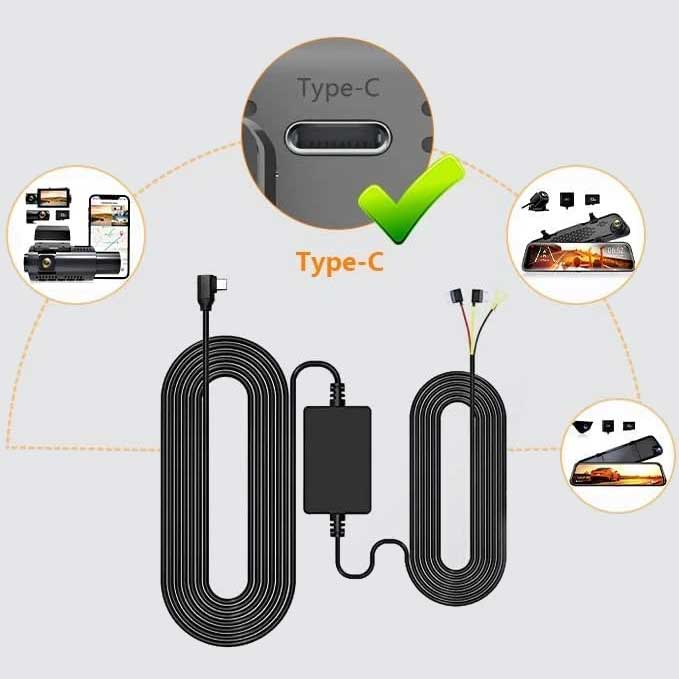

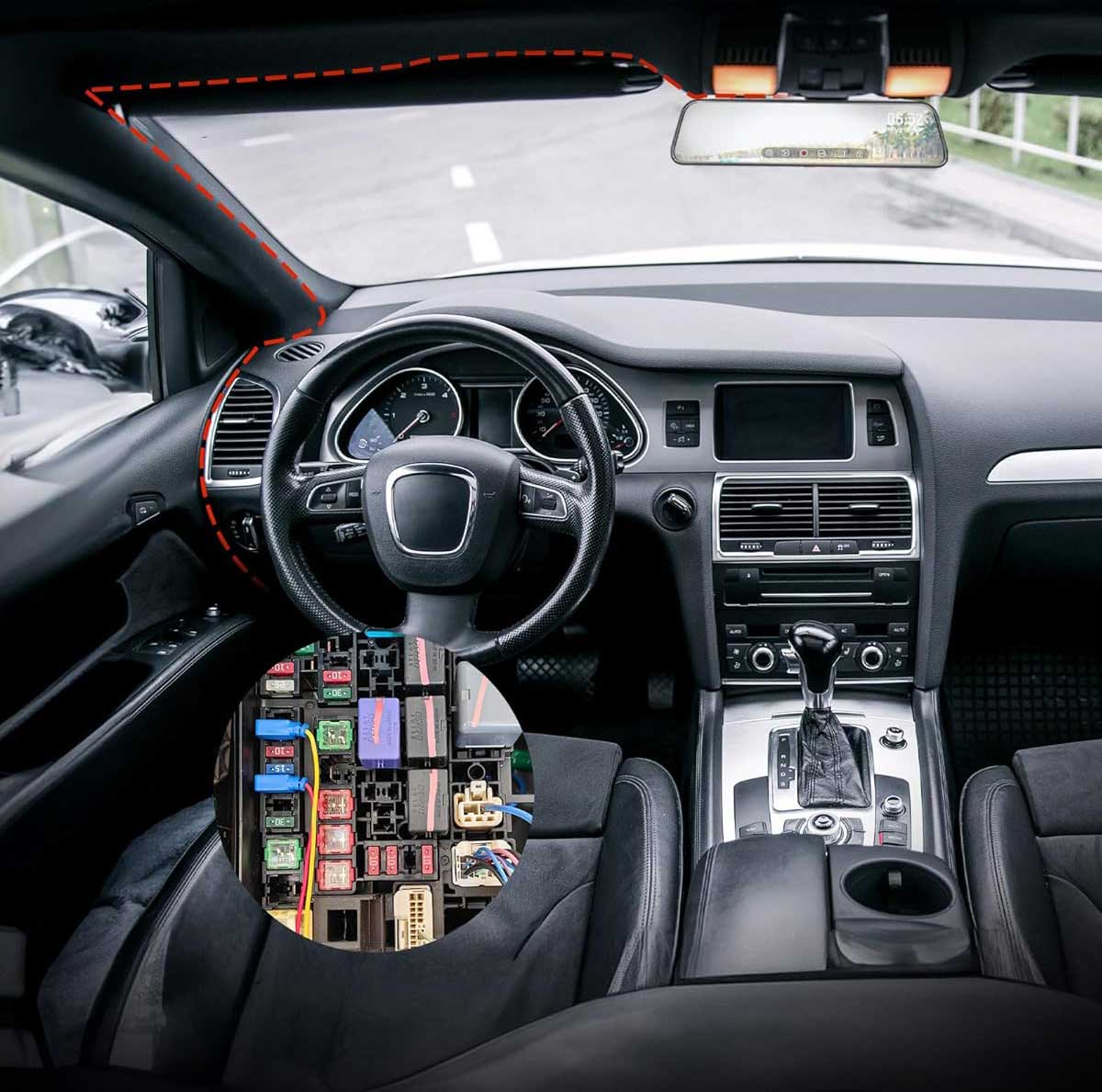

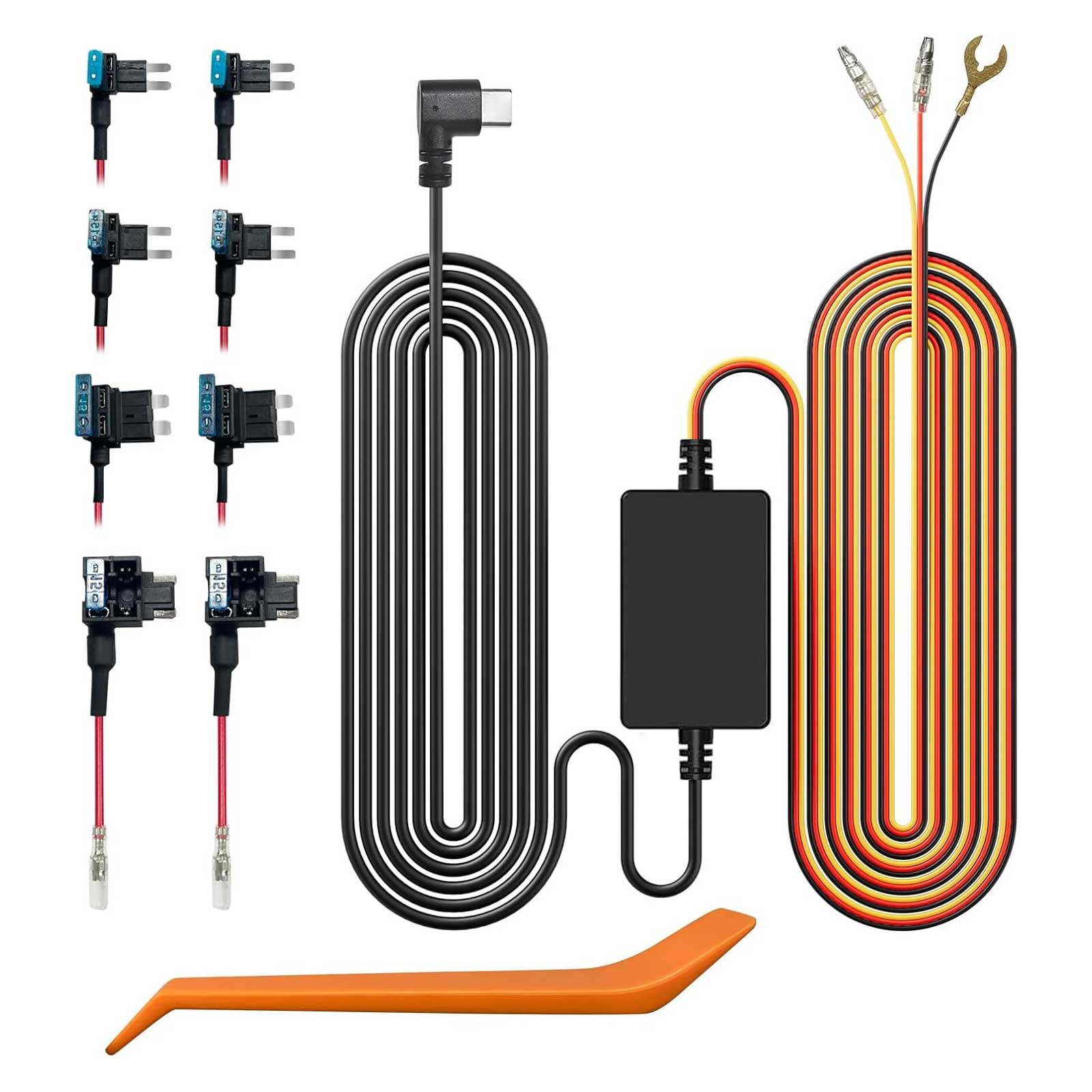

This Wolfbox hardwire kit USB-C 3-wire is an intelligent power supply for all Wolfbox dashcams. This power supply can be connected to the car's fuse box to provide power to the dashcam when the ignition is off. The Wolfbox power supply comes with all four types of fuse holders, making installation very easy and safe.
Variable battery protection
The power supply has a built-in module with a switch that ensures that the car's battery does not run flat due to filming with the dashcam. The switch can be set to 11.6V, 12.0V or 12.4V. The power is interrupted when the battery voltage falls below the set threshold. The battery protection does not work with 24V vehicles.
Automatic parking mode
Because this Wolfbox power supply is connected to two different power points, the dashcam detects when the car's ignition is turned on and off. It automatically goes into parking mode when the car's ignition is turned off and resumes regular recording when the car is started.
Installation
See this page for detailed instructions on installing this hardwire kit.

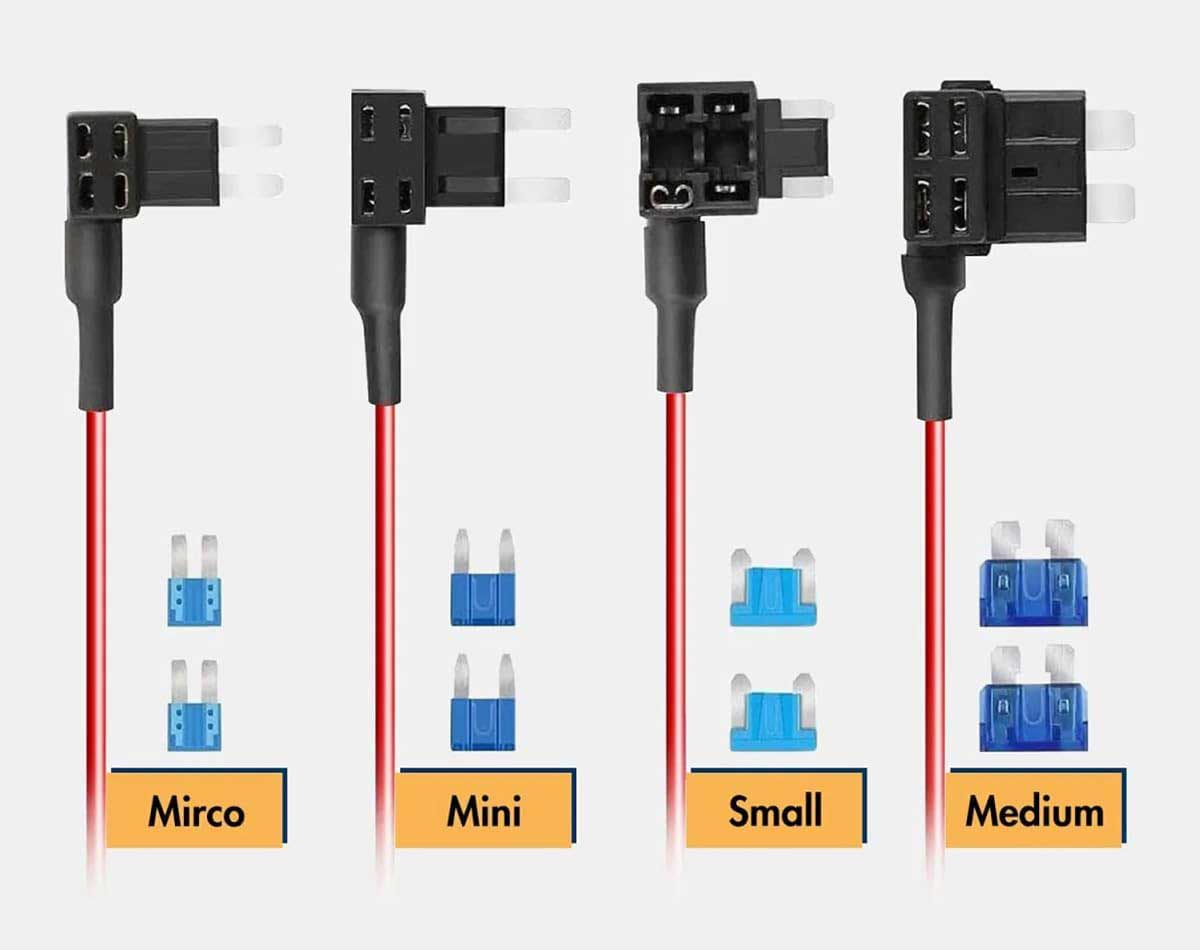

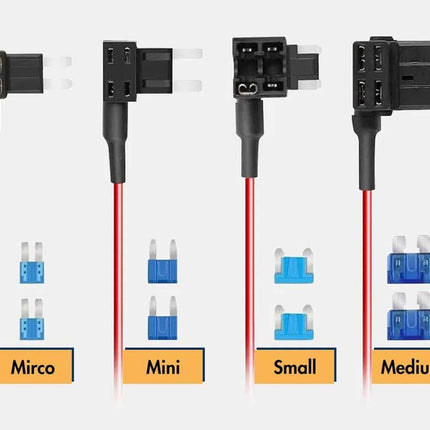

Includes four types of Add-a-fuse plugs
Connecting the power supply is made even easier by the inclusion of four types of Add-a-fuse plugs. This means that only the fuse needs to be replaced with one of these plugs. This is much safer than having to connect wires to an existing fuse.
Specifications
Length: 3.5 meters
Plug: USB-C
Input: 12V/24V
Output: 4.7V 2.0A
Battery protection: 11.6V-12.4V
Type: 3-wire
