Description

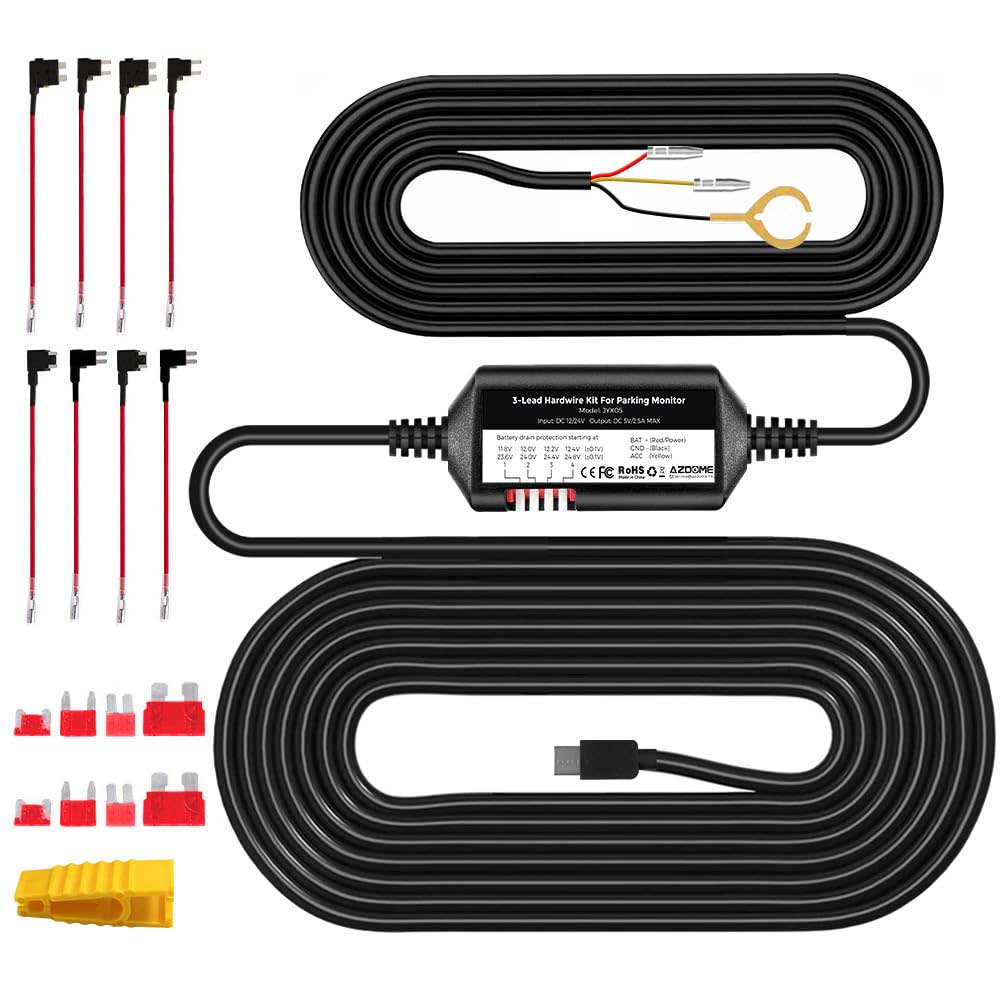

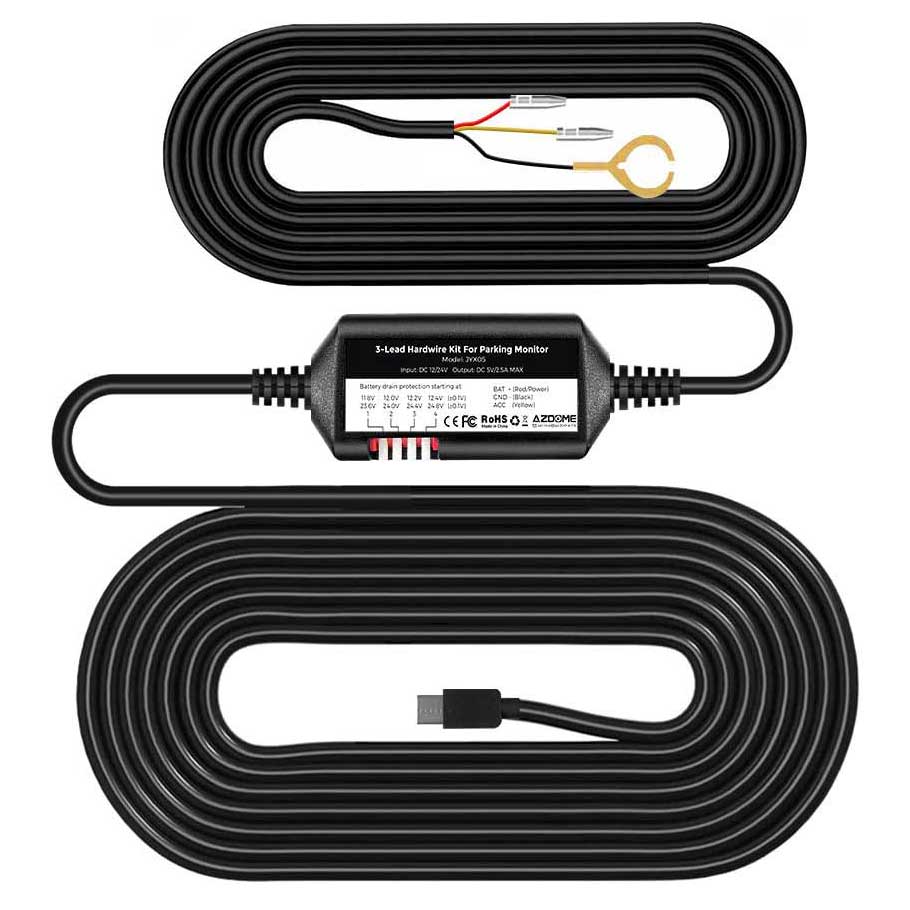

This AZDome JYX05 hardwire kit USB-C 3-wire is an intelligent power supply for all AZDome dashcams with USB-C power. This hardwire kit can be connected to the car's fuse box to power the dashcam when the ignition is switched off. The AZDome Continuous Power Supply USB-C 3-wire kit comes with all four types of fuse holders.

Note: Suitable for all AZDome dashcams with USB-C input such as GS63H Pro, M330, M550 Pro, M560, M770 Pro and AR09.

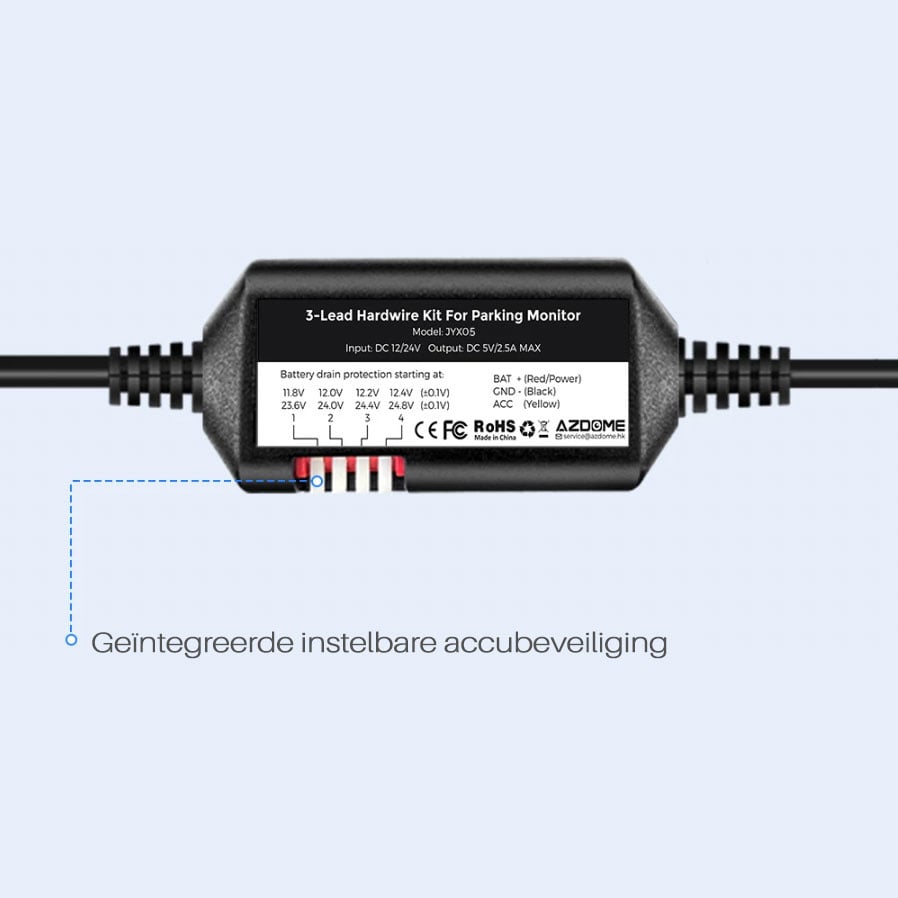

Variable battery protection

The power supply has a built-in module with switch that ensures the car's battery does not run down from filming with the dashcam. The switch can be set to 11.8V/23.6V, 12.0V/24.0V, 12.2V/24.4V or 12.4V/24.8V. Power is cut off when the battery voltage falls below the set threshold.

Automatic parking mode

Because this AZDome power supply is connected to two different power points, the dashcam senses when the car ignition is turned on and off. As a result, it automatically goes into parking mode when the car ignition is turned off and starts regular recording again when the car is started.

Installation

View detailed instructions on how to install this hardwire kit on this page.

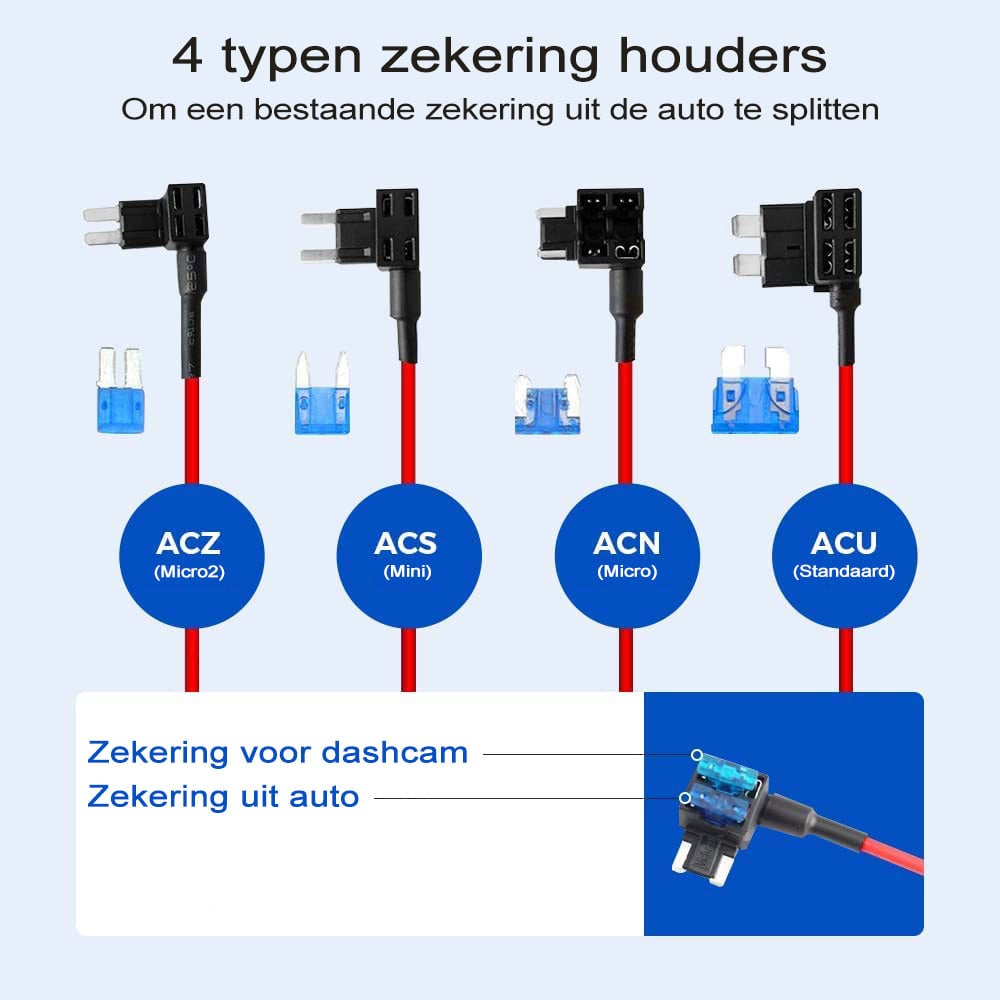

Four types of Add-a-fuse plugs included

Connecting the power supply is made even easier as 4 types of add-a-fuse plugs are included. This way, only the fuse needs to be replaced for one of these plugs. This is a lot safer than having to plug wires into an existing fuse.

Specifications

Length: 3.5m

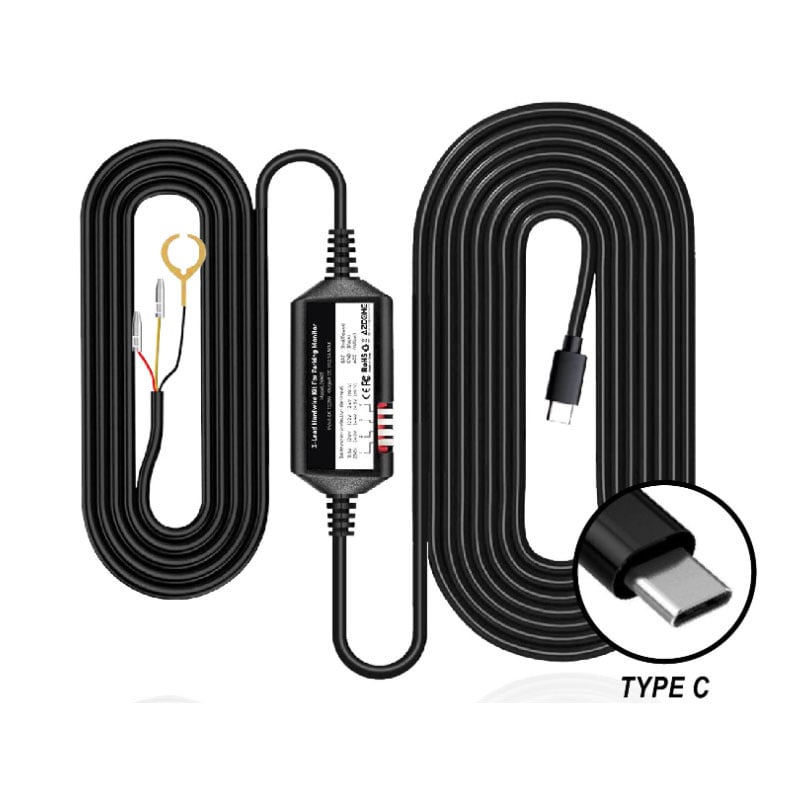

Plug: USB-C
Input: 12V/24V
Output: 4.7V 1.5A
Battery protection: 11.8V-12.4V
Type: 3-wire
